Introduction

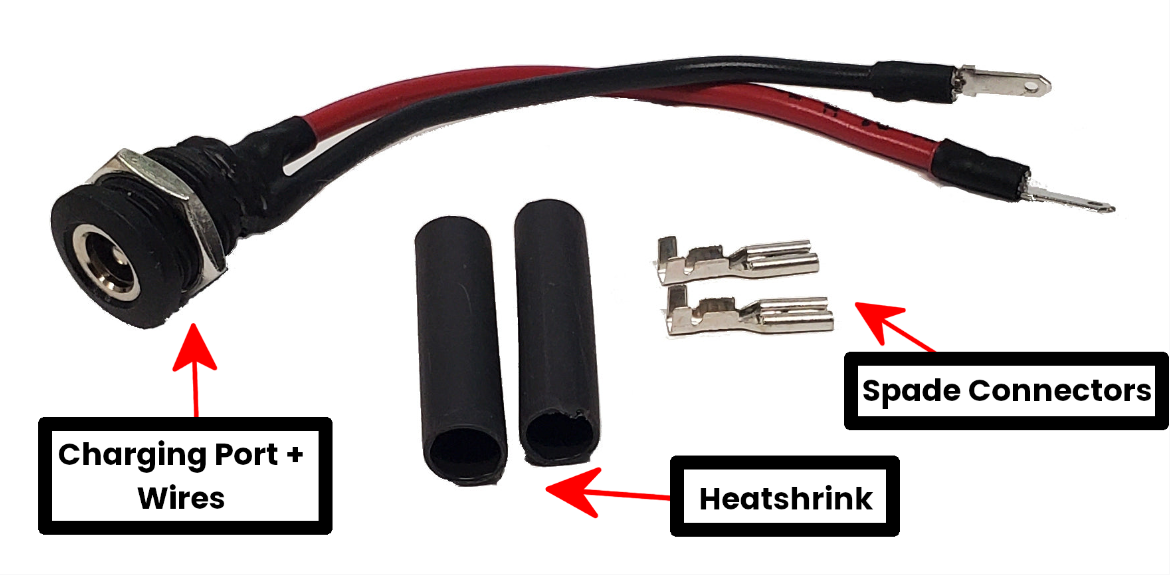

Follow this guide to swap out the on-bike charging port for your bike that uses a Hidden Downtube Battery alongside the small parts kit from Biktrix. The parts names used in this kit will be the same as you see here

You will need the following tools to do this:

  • Multimeter

  • Phillips Screwdriver

  • Flathead screwdriver

  • 3mm Allen Key

  • Adjustable Wrench

  • Wire Strippers

  • Needlenose Pliers

  • Exacto knife/sharp blade

  • Hair Dryer/HeatGun/Lighter to shrink heat shrink

Step 1

  • Remove your internal hidden battery and any range extender batteries if they are presently installed.

  • Hold the POWER button to turn on your display with the batteries removed.

    • This is to purge any excess electricity from the system

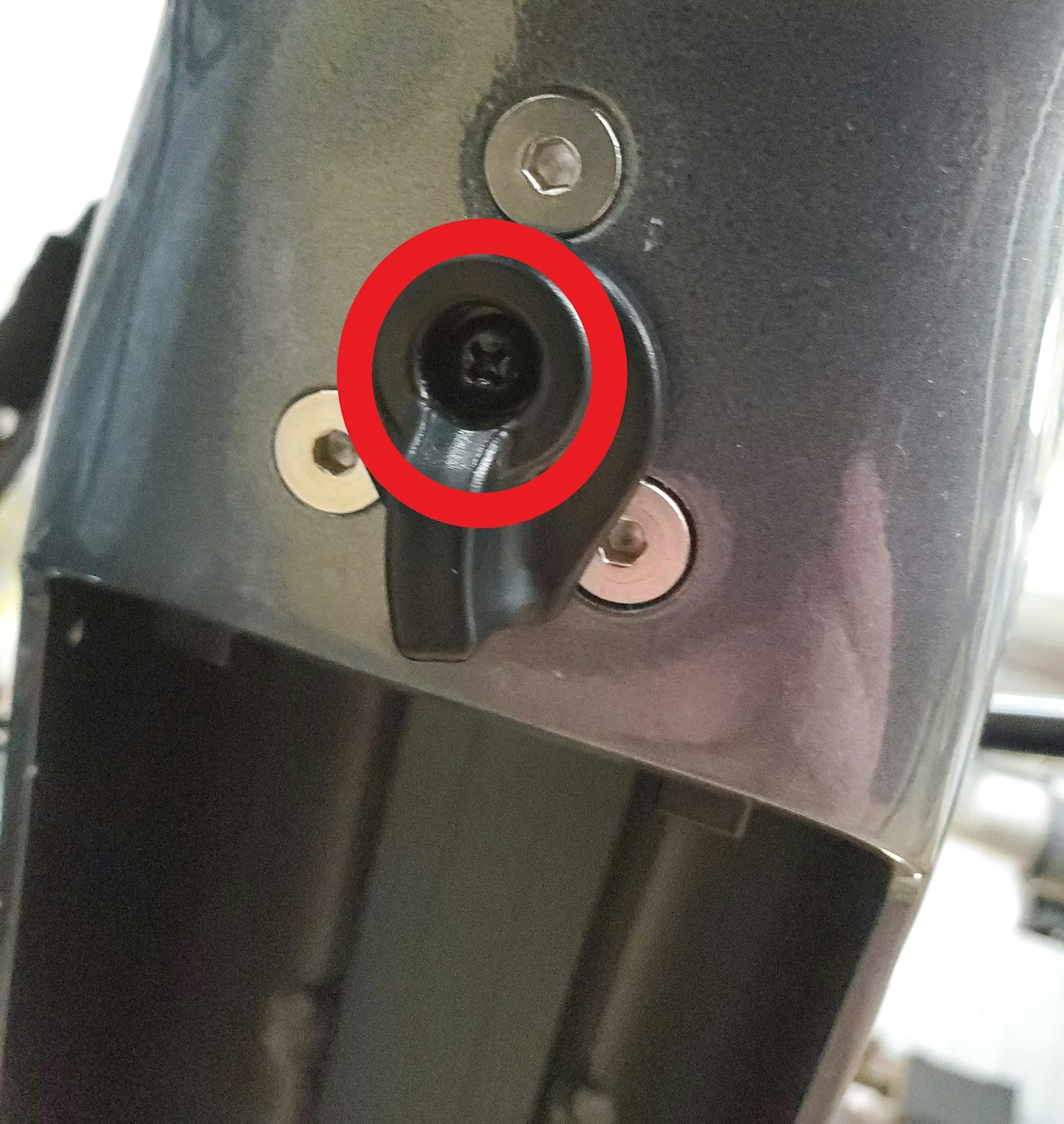

  • Remove the screw holding in the battery release knob with Phillips head screwdriver. Then remove the battery release knob.

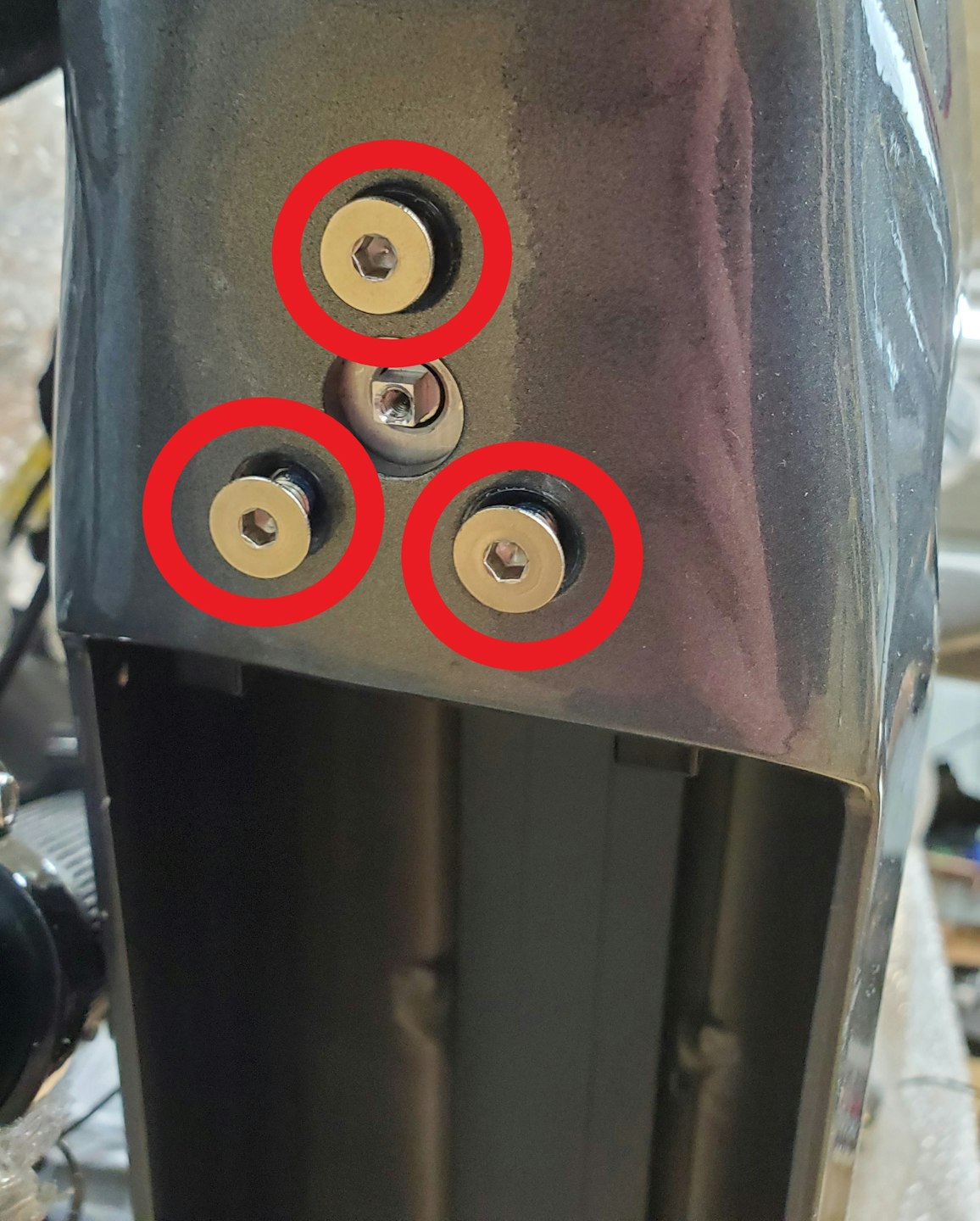

  • Remove the three screws located around where the battery release knob was with a 3mm Allen key. Then remove the screws.

  • With the hardware removed you can remove the battery lock. Push the keyhole inwards then slide out the battery lock from the downtube cavity.
