Introduction

If you are having issues with your PAS not working on a Juggernaut Hub Duo eBike you may need to disconnect the Gear Shift Sensor.

To do this you will need the following tools:
  • 2.5mm Allen Key

Step 1

  1.  Remove any batteries from the bike and discharge any excess power from the system by holding the POWER button on your display.

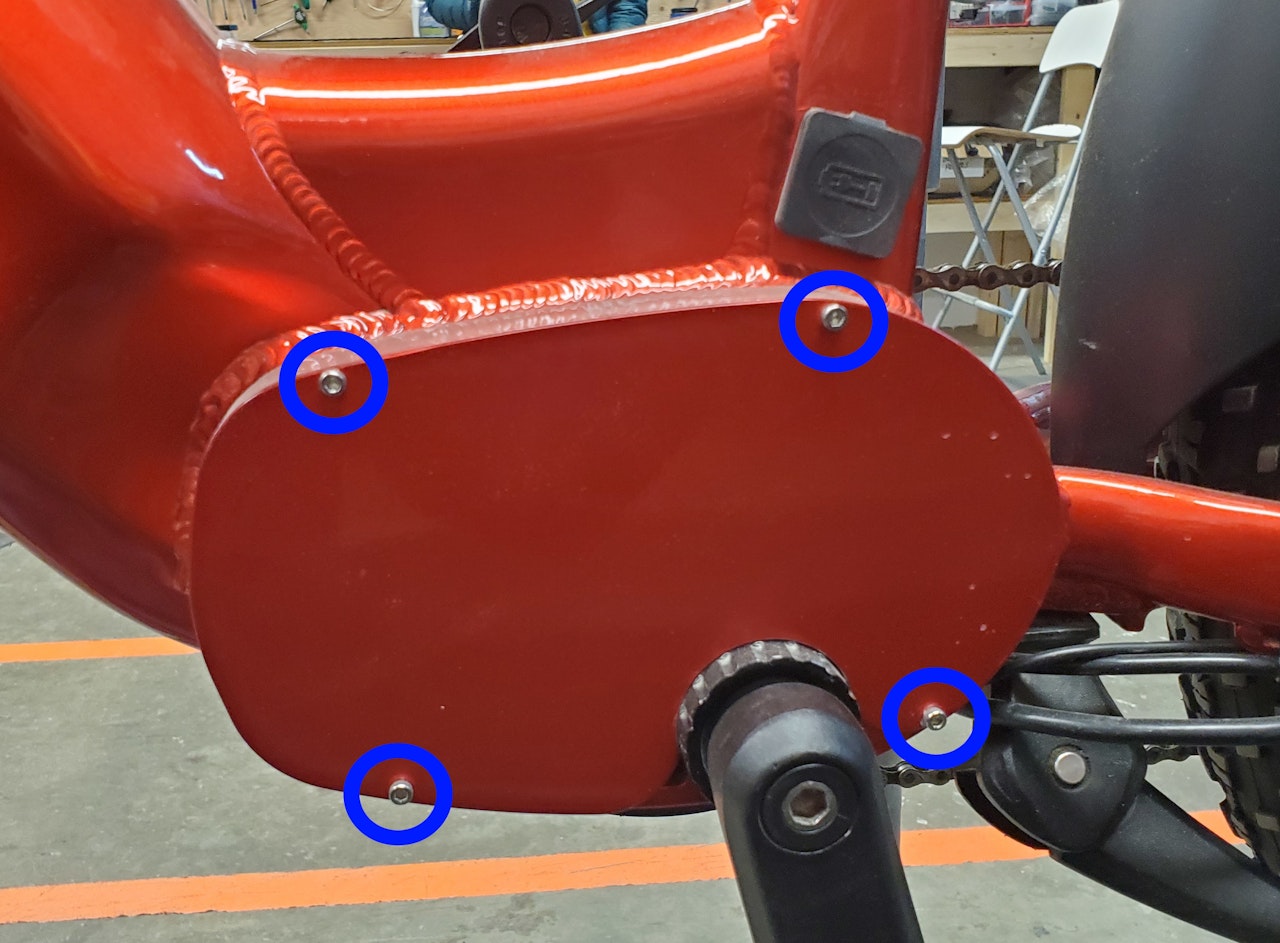

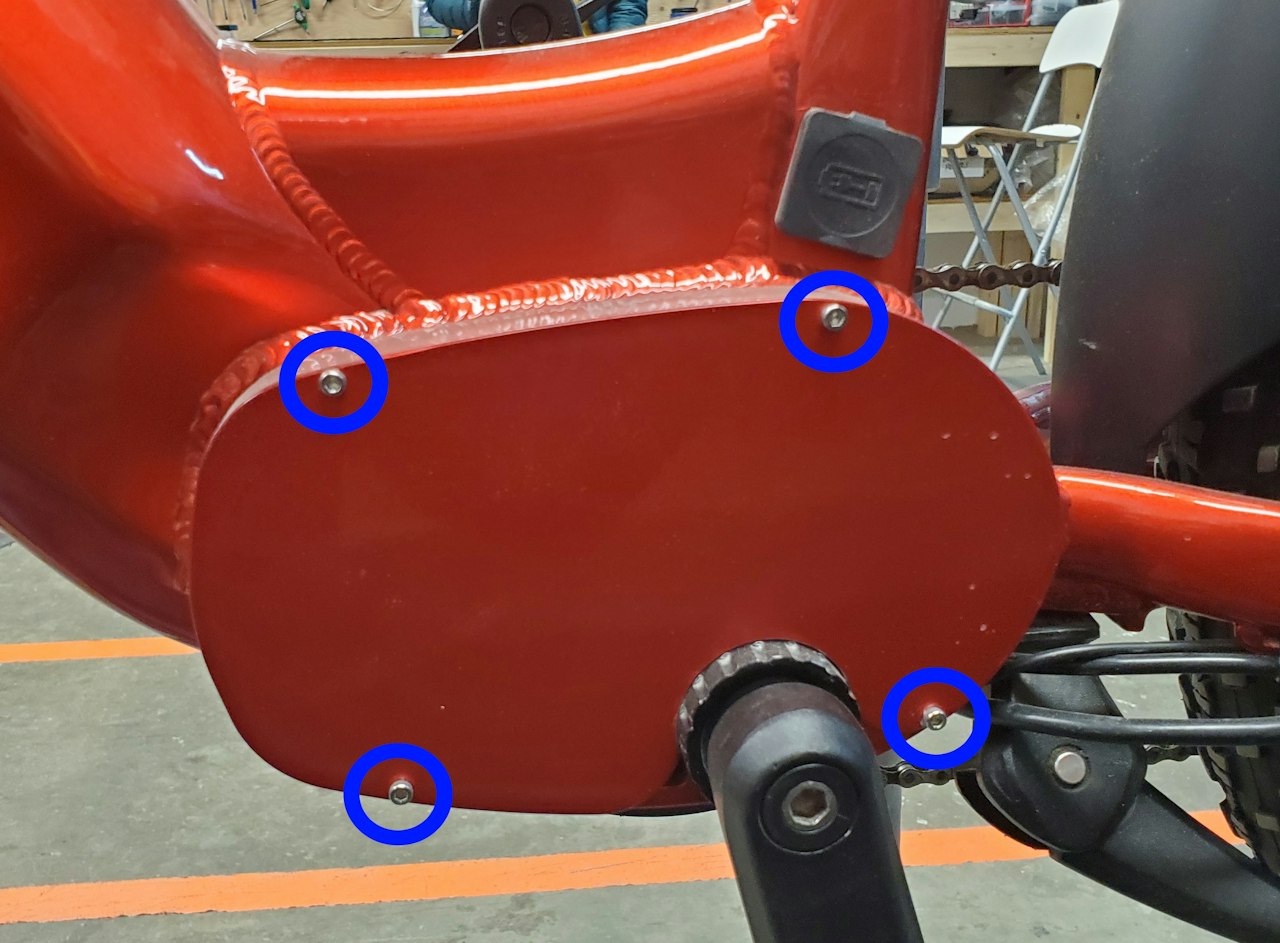

  2. Open up the controller compartment on the non-drive side of the bike. To do this remove the 4 circled screws with a 2.5mm Allen Key.
  3. With the screws removed take off the cover.
