Bafang Ultra Motor Connections

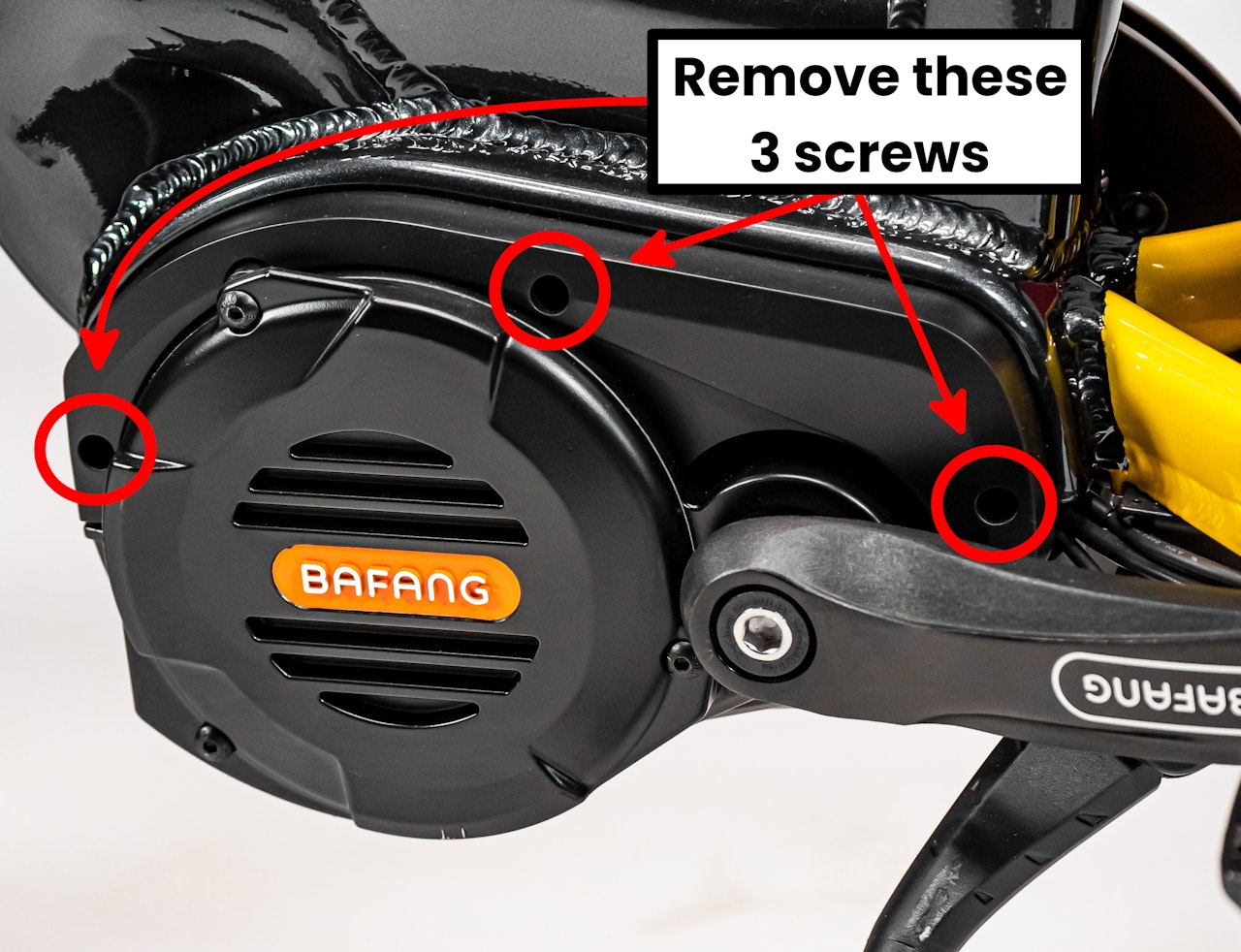

Open the side cover plate on the motor by unscrewing the 3 screws located as shown in the pic.

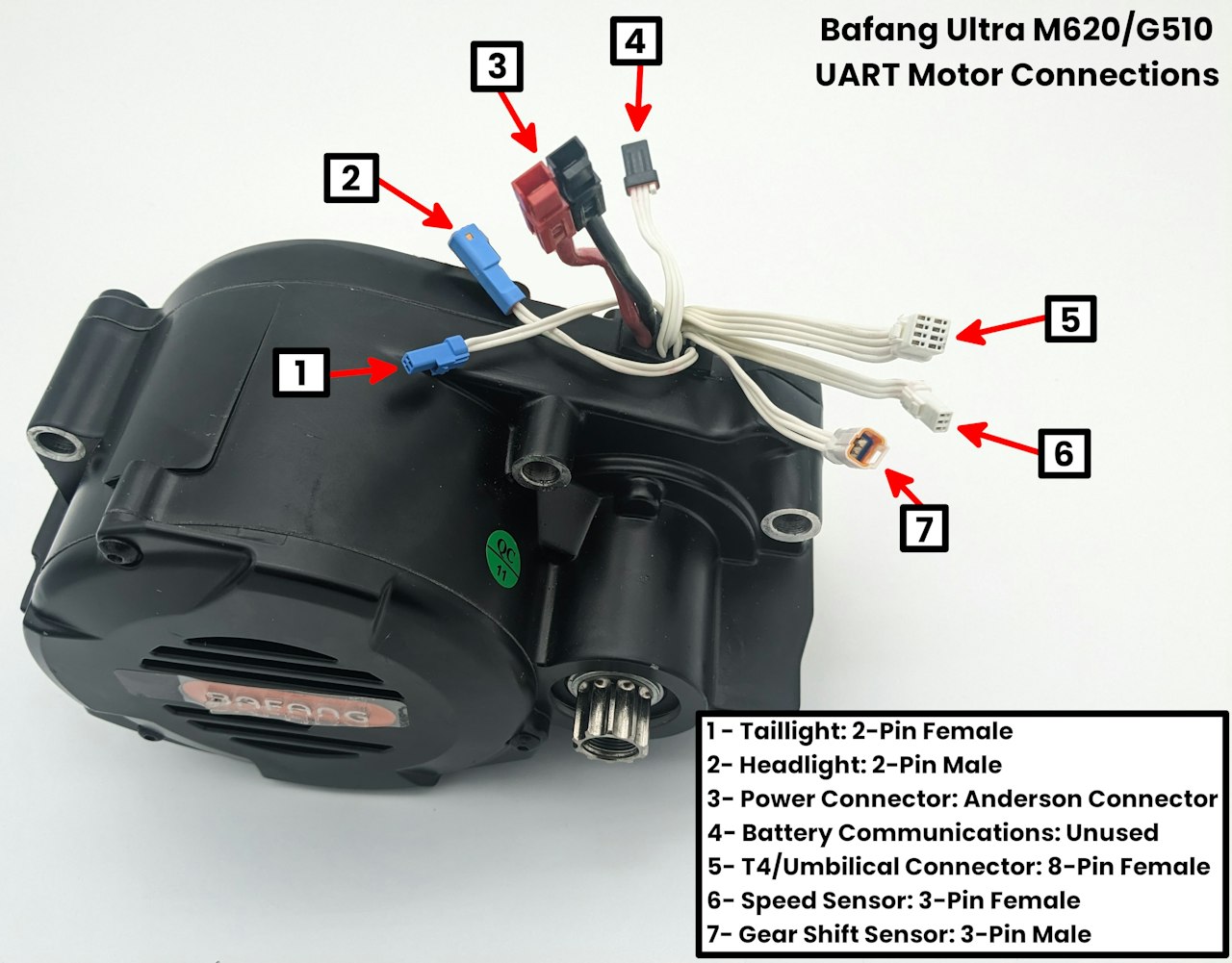

Ultra motor connections
Once the cover plate is removed, you can gently pull out the wires stacked in the motor cavity.
