Handlebar Water Bottle Mount

These instructions will help you install the Water Bottle Holder that mounts to the handlebars of your eBike!

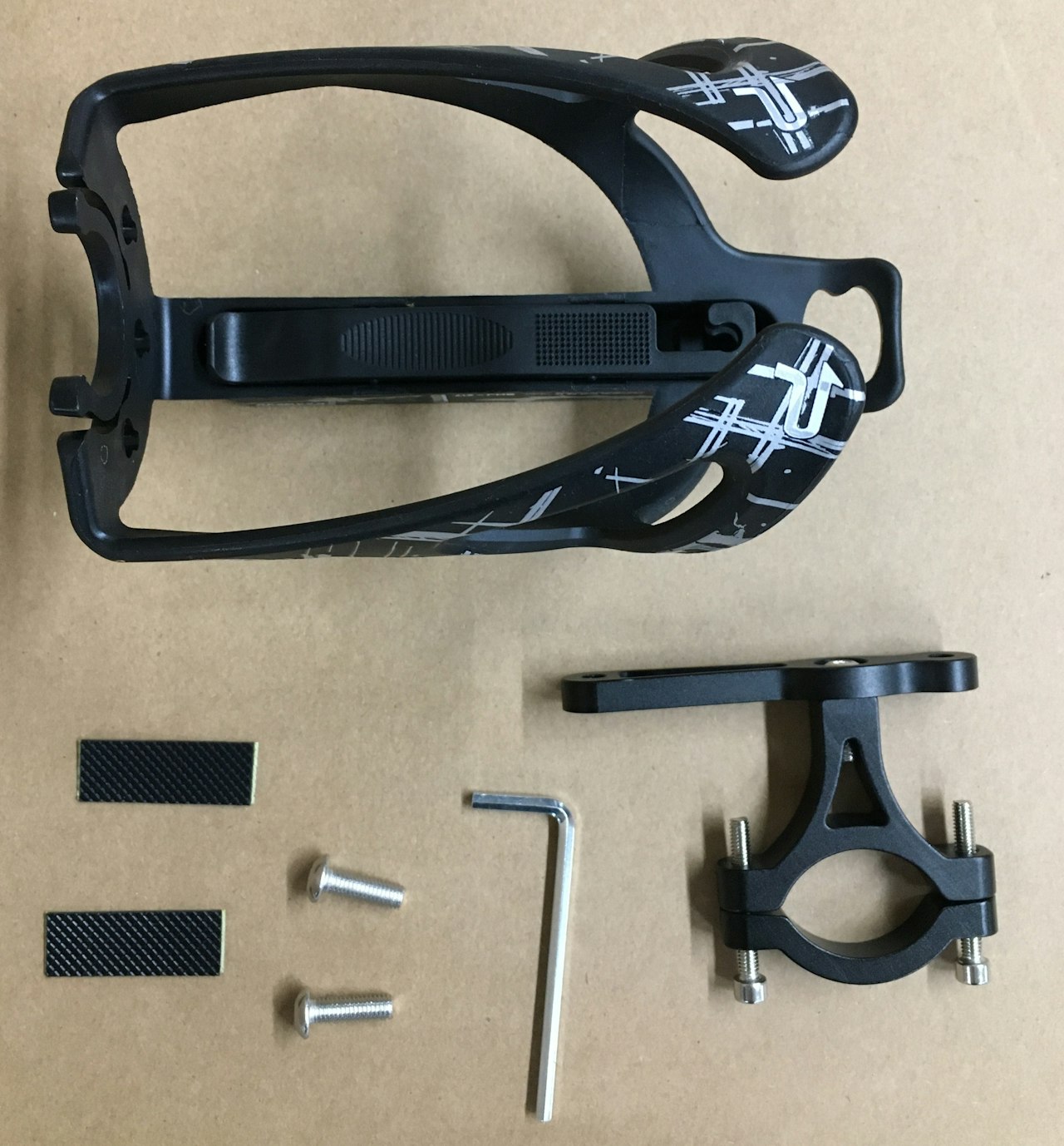

  1. Locate all of the included hardware and Allen key for installation.

Step 1

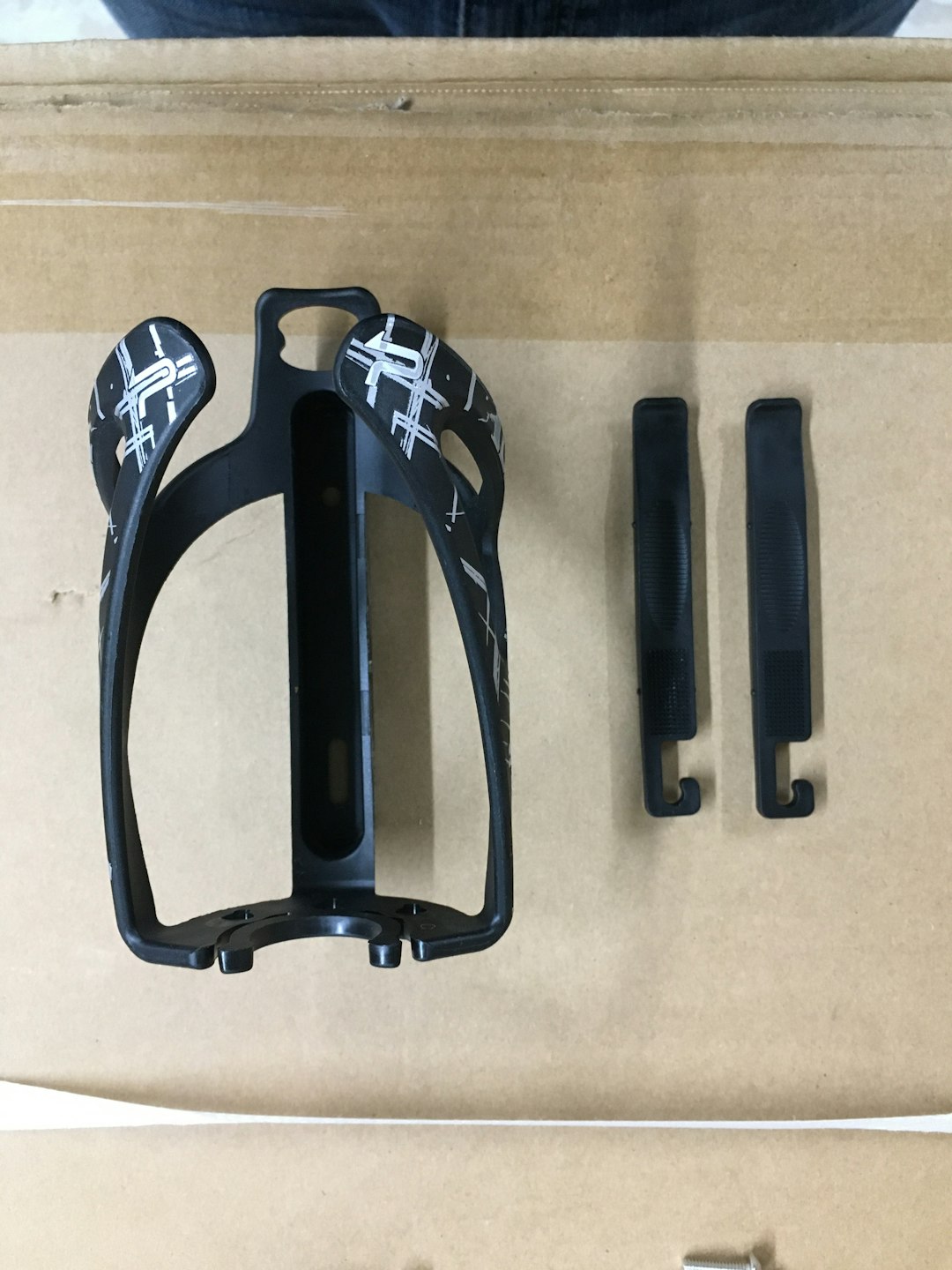

  1. Remove the two plastic tire levers that are inside the water bottle holder

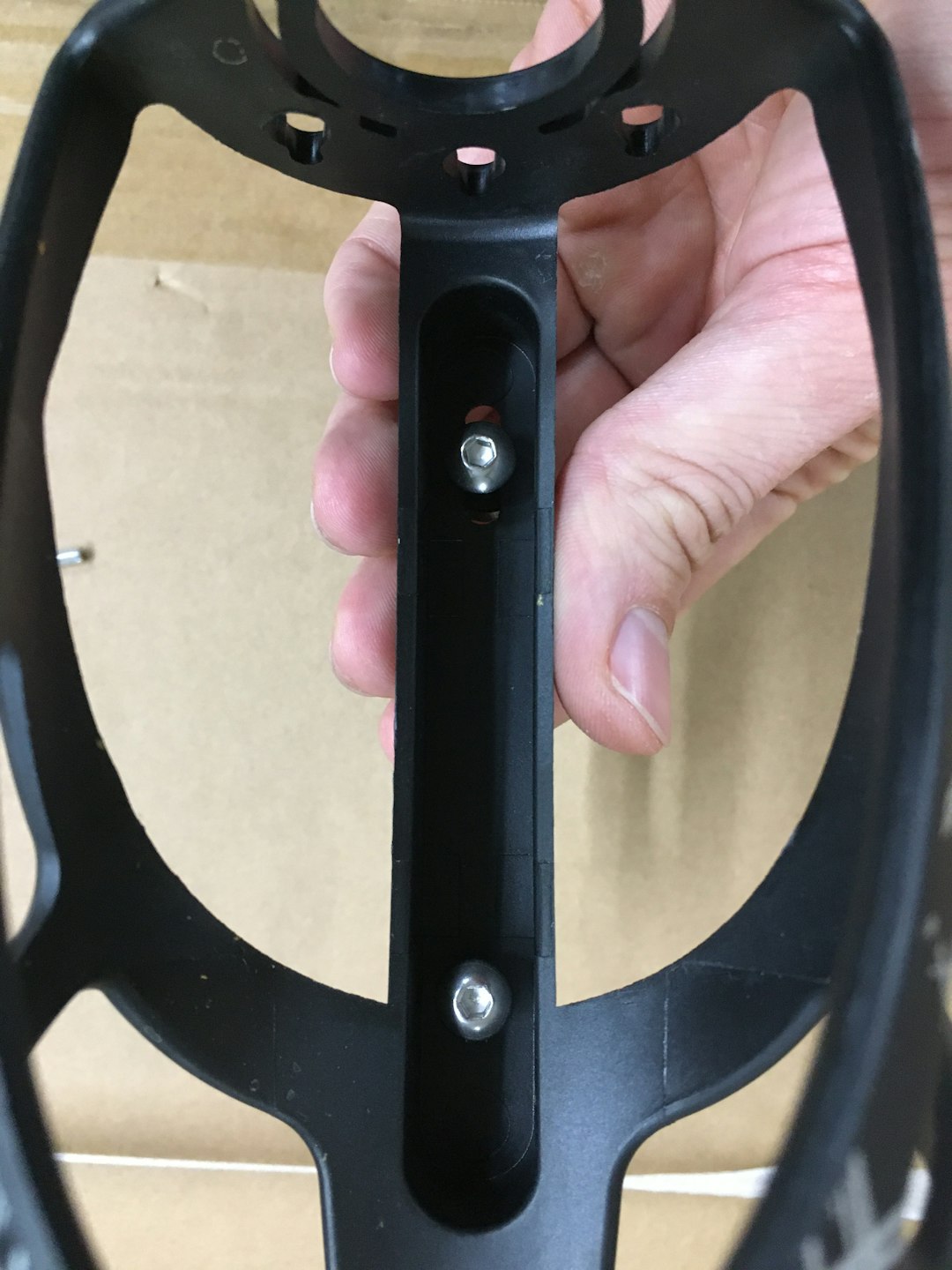

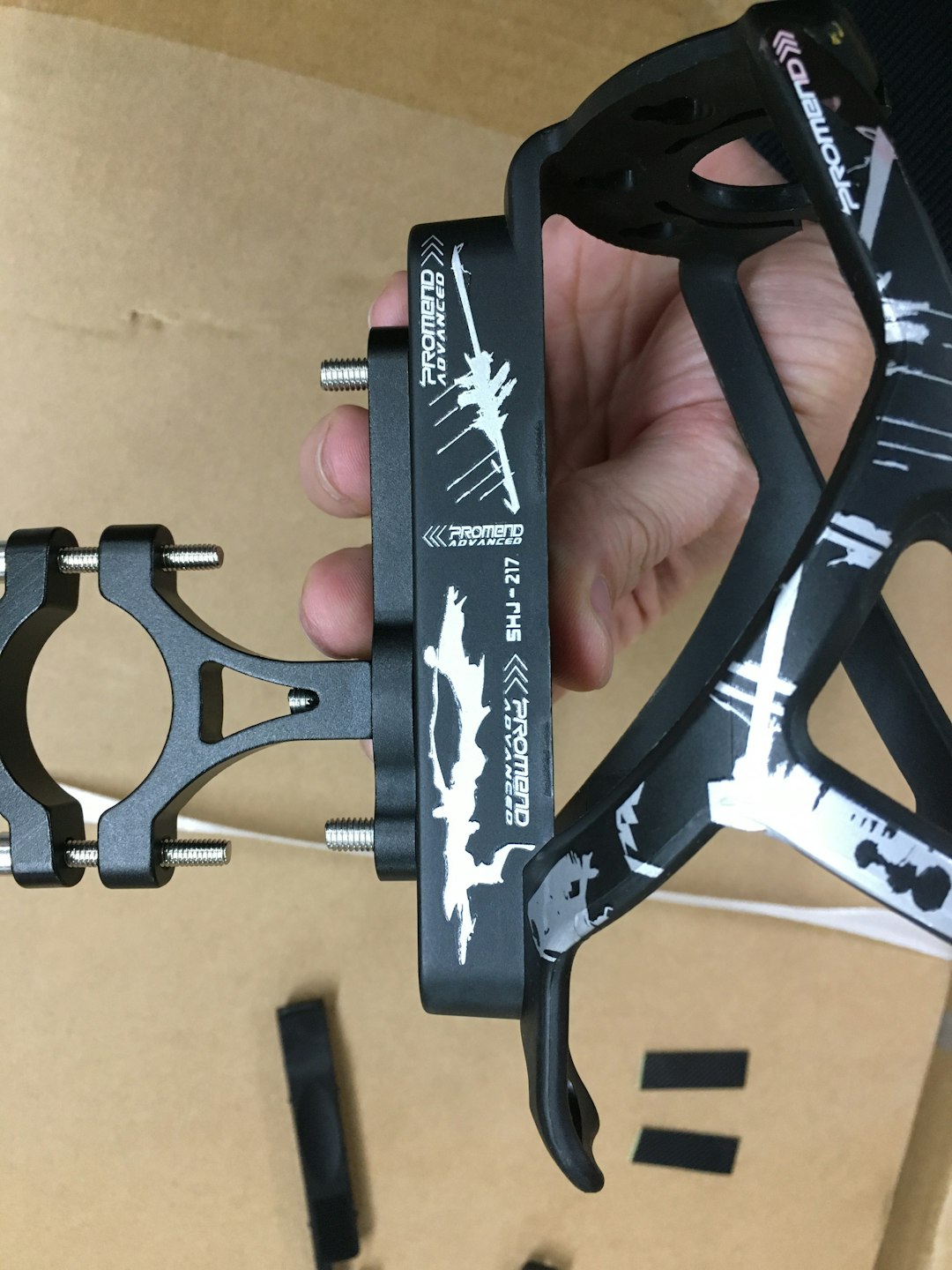

  2. Connect the handlebar mount with the bottle holder assembly by using the two screws

Step 2

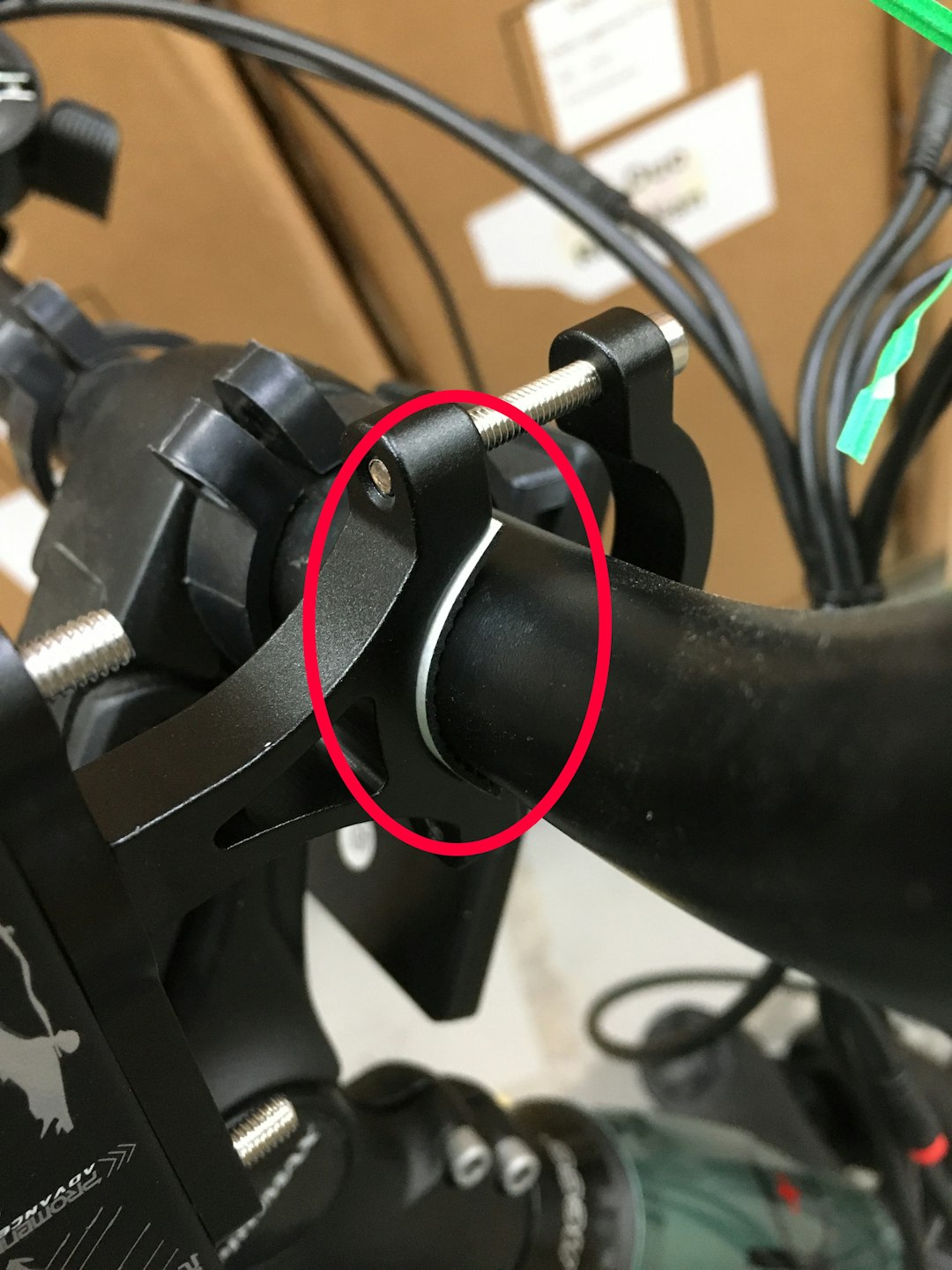

  1. Stick the two black sticker protectors on the inside of the handlebar mount

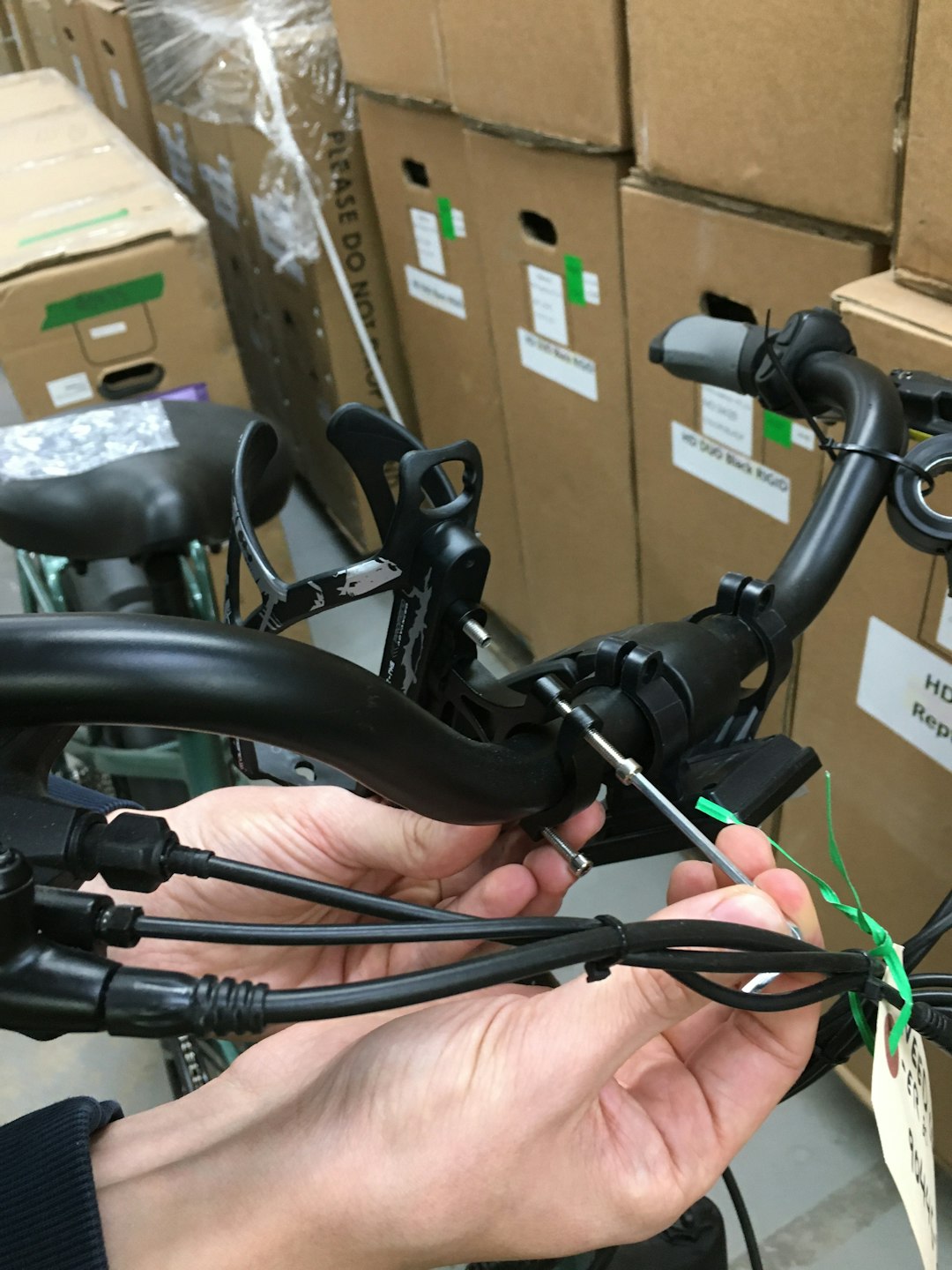

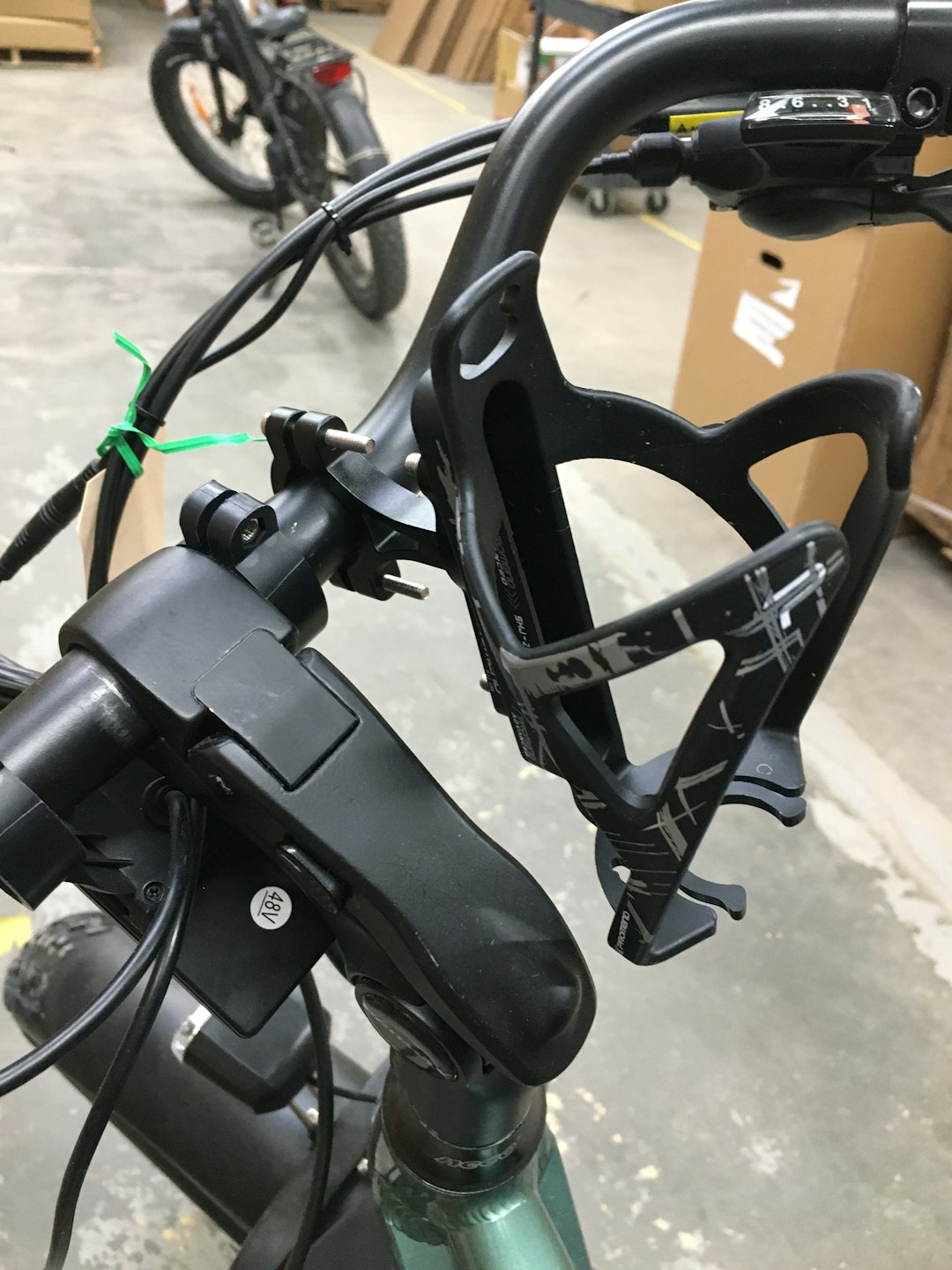

  2. Mount the bottle holder onto the handlebars! At this step orient the bottle holder in a way that it will be most useful to you!
    • You can always experiment with how this is orientated to ensure it works best for you!
