Accessory Extension Mount

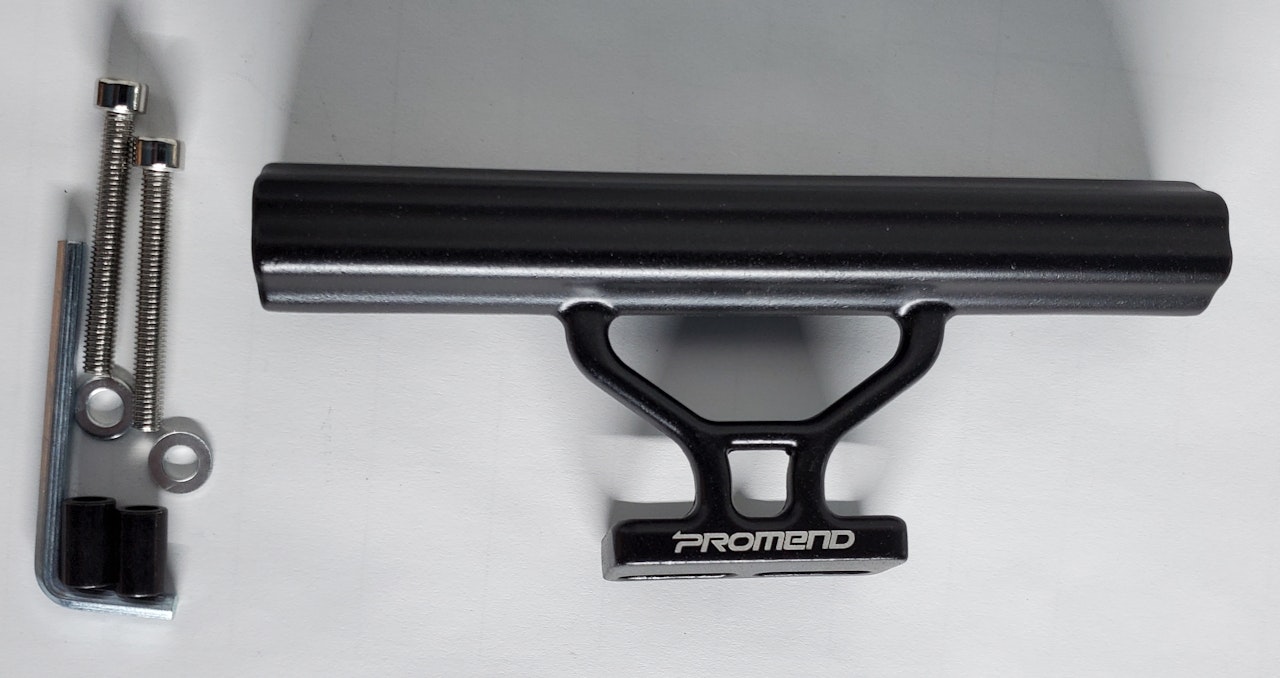

The accessory mount will come with all of the necessary parts and tools for installation. These are:
- The Accessory Mount
- 2 x M5 Bolts
- 2 x Washers
- 2 x Spacers
- 1 x 4mm Allen Key
![](https://media.stonly.com/media/images/6871d6be-f27c-43e8-ae7d-96a2f93f032f.jpg?s=f12aa22cc9b9db8d03dda3d3ebc47258c863972d5fe312a116b984032af754a40e8d1ed127c37135c5f9b0245f365158a5a0444eba955048d2836b5dca3fbecc153bb2533eb1ce6b99e5657cd5000250821c8a6545805109143d12d79df8fc83317aff1bfe8fd18471b8daa6c692e4a3&w=1280&h=1440&auto=format)
![](https://media.stonly.com/media/images/a85be19c-e473-402b-b7b8-a6d6f35064b4.jpg?s=f12aa22cc9b9db8d03dda3d3ebc47258c863972d5fe312a116b984032af754a40e8d1ed127c37135c5f9b0245f365158a5a0444eba955048d2836b5dca3fbeccbe39b85c0cfb93e427b296dc6c17ad5bc6f8581d0fae513cee39158da0c81de6317aff1bfe8fd18471b8daa6c692e4a3&w=1280&h=1440&auto=format)
Step 1

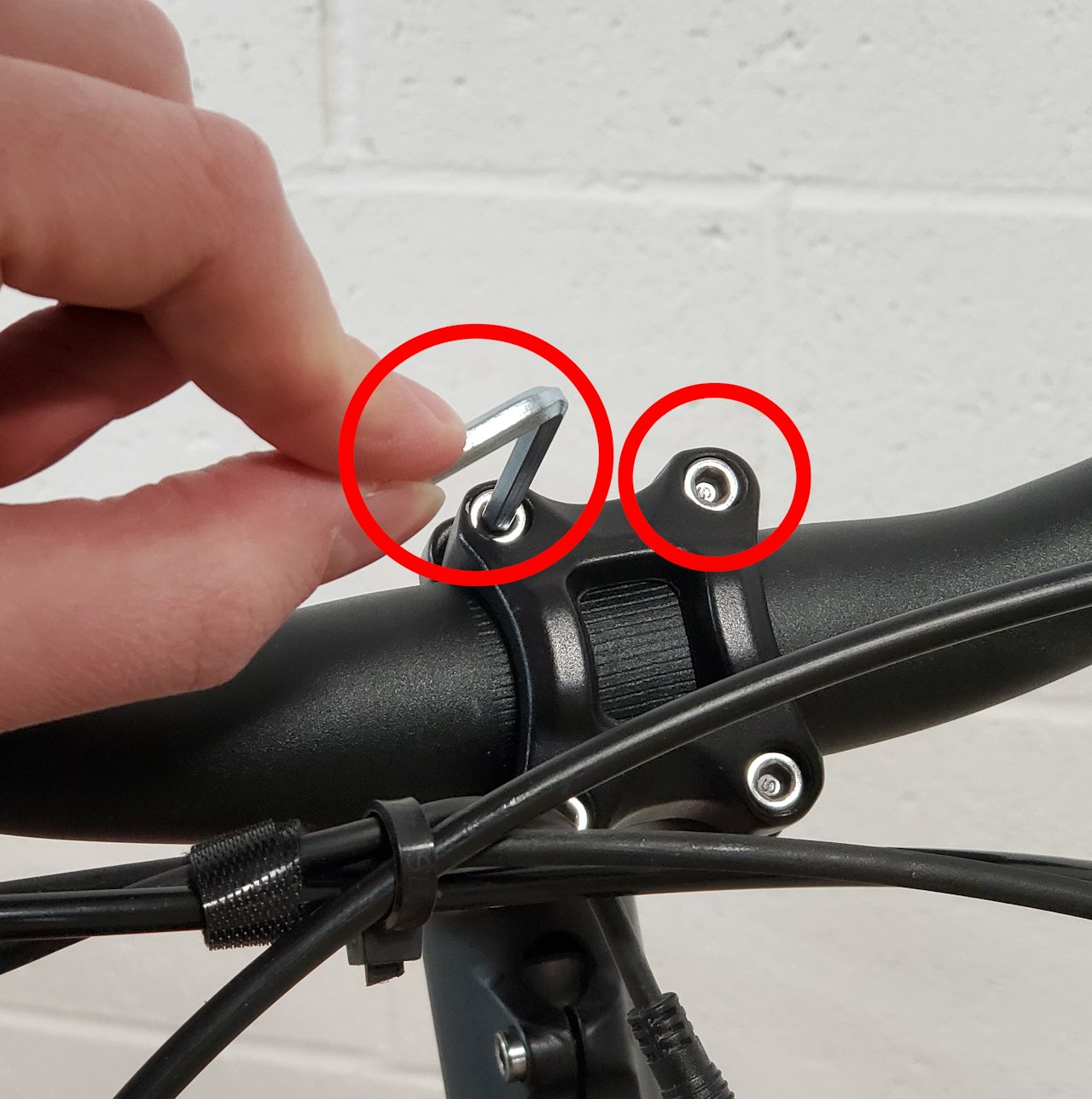

- Loosen all 4 bolts that secure the handlebar faceplate to the bike stem using the 4mm Allen Key. Then fully remove the two 2 bolts as seen in the first image.

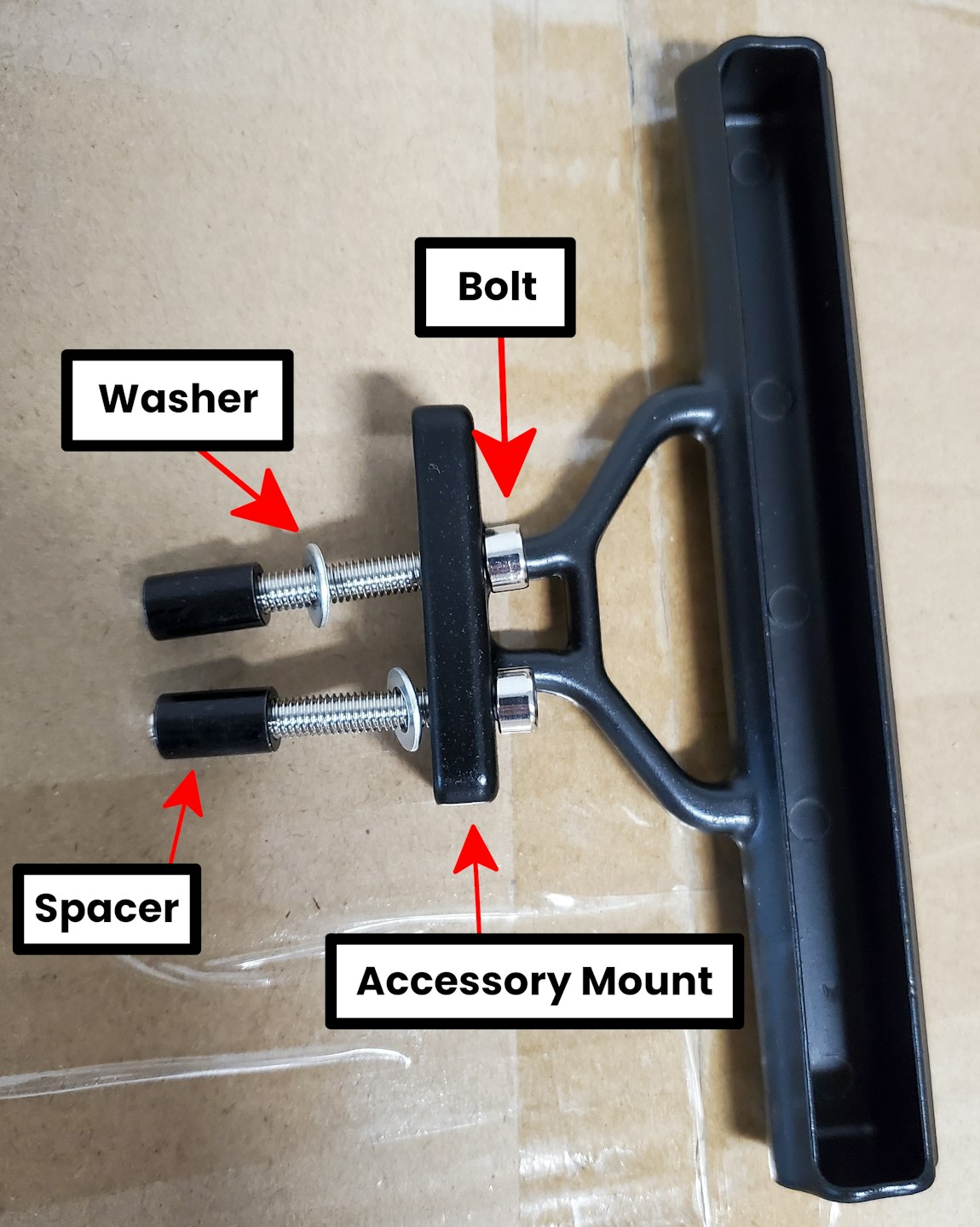

- Take the Accessory Mount and line up all of the hardware as seen in the second image here.
![](https://media.stonly.com/media/images/8a6bc7ca-cdd7-428a-a795-768bd35e777b.jpg?s=f12aa22cc9b9db8d03dda3d3ebc47258c863972d5fe312a116b984032af754a40e8d1ed127c37135c5f9b0245f365158a5a0444eba955048d2836b5dca3fbecc82b25561c8f08d53cf89055b88e525a1bec7d95605de08a5b419d426daa7b931317aff1bfe8fd18471b8daa6c692e4a3&w=1280&h=1440&auto=format)
![](https://media.stonly.com/media/images/b98d4984-d2c9-4c76-bfd9-81ae3d2fd168.jpg?s=f12aa22cc9b9db8d03dda3d3ebc47258c863972d5fe312a116b984032af754a40e8d1ed127c37135c5f9b0245f365158a5a0444eba955048d2836b5dca3fbeccdf83a17ca2784f454473d15b092217cec4a760c93a0c60c2a144a89884e37642317aff1bfe8fd18471b8daa6c692e4a3&w=1280&h=1440&auto=format)
![](https://media.stonly.com/media/images/3e2c70a5-affe-405a-8144-96ab5c5e87f8.jpg?s=f12aa22cc9b9db8d03dda3d3ebc47258c863972d5fe312a116b984032af754a40e8d1ed127c37135c5f9b0245f365158a5a0444eba955048d2836b5dca3fbecc4af880666cb183054cefc351a837ce14397bec091df387ce5a05d9a4ef9ace4a317aff1bfe8fd18471b8daa6c692e4a3&w=1280&h=1440&auto=format)
Step 2

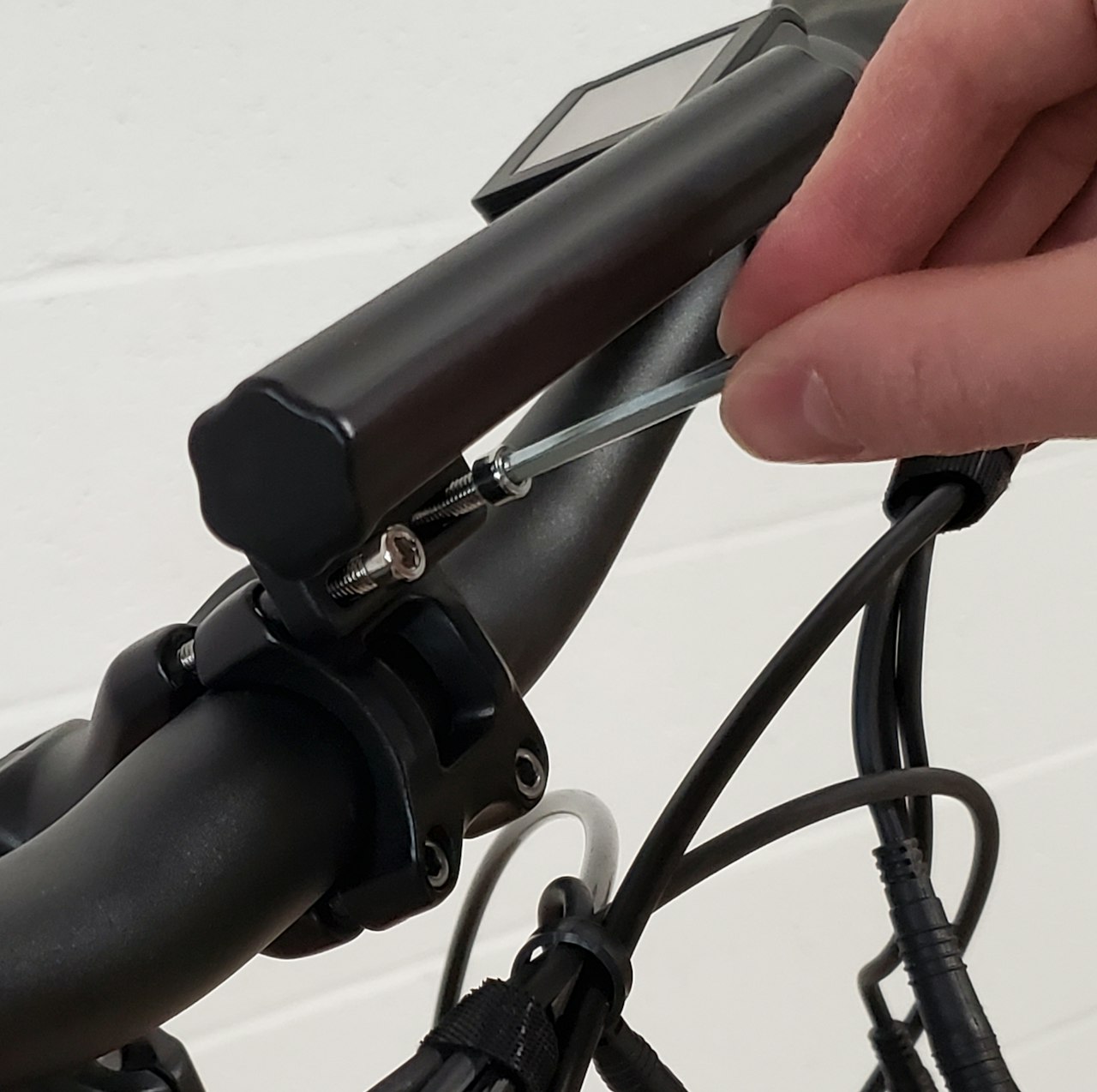

- Insert the bolts from the accessory mount into the spaces you removed the two bolts from in the previous space.
- Thread these two bolts approximately halfway into the stem

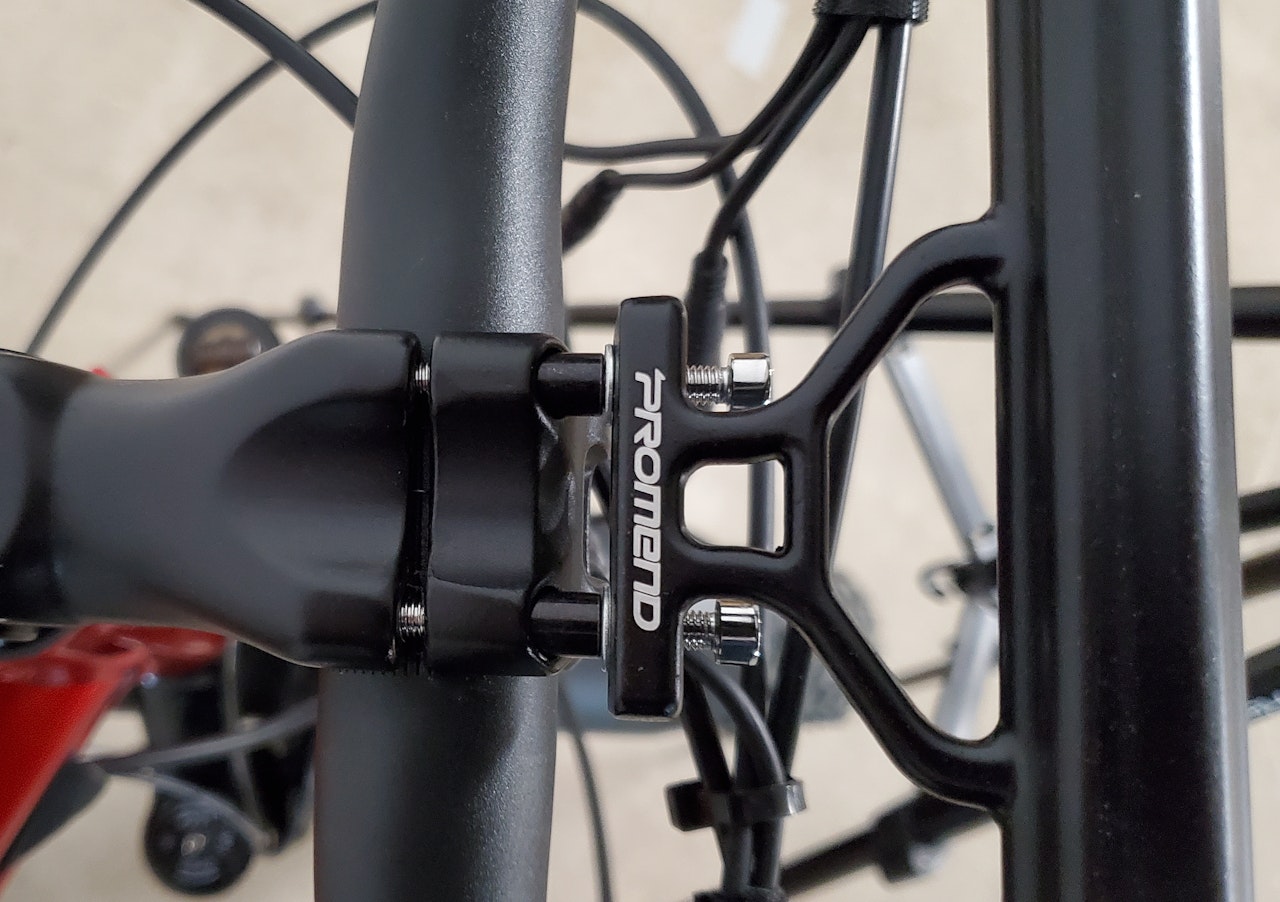

- Line up the spaces on the Accessory Mount evenly or however, you wish for it to be configured.

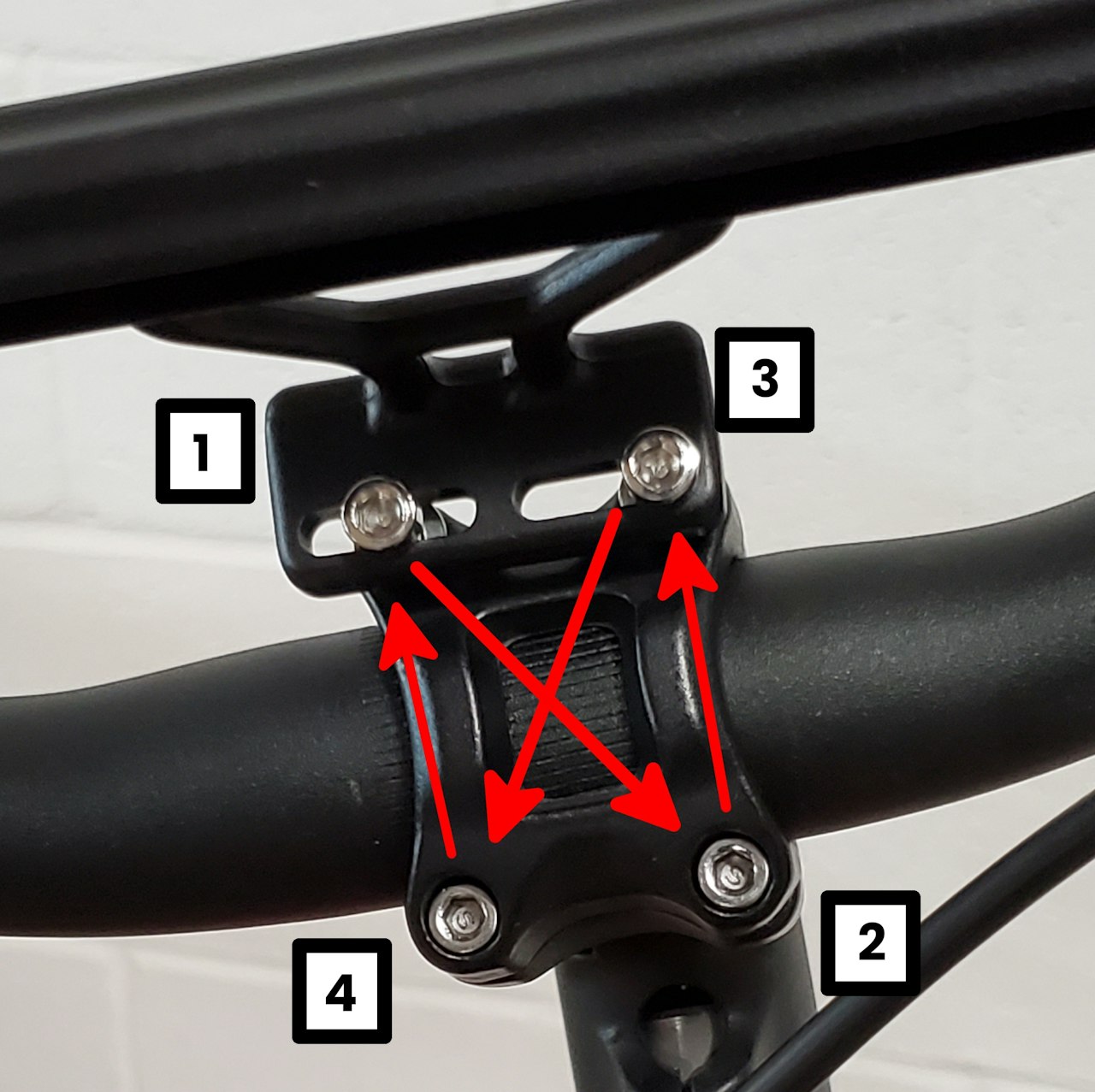

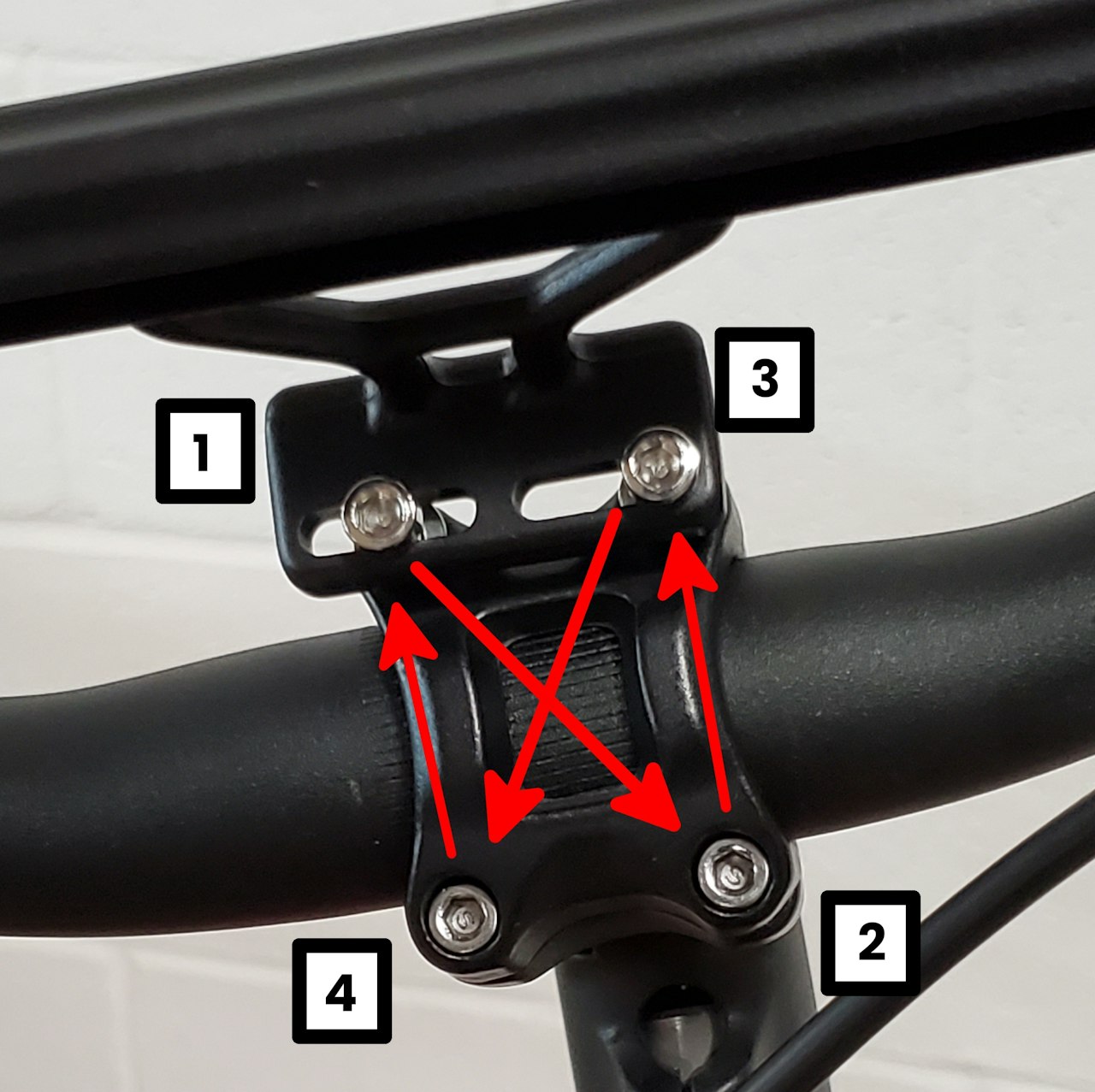

- Tighten all of the Handlebar faceplate Bolts in a Star Pattern as seen in the third image here.
Your Accessory Mount should now be installed and ready for you to mount anything you want with that extra space!
